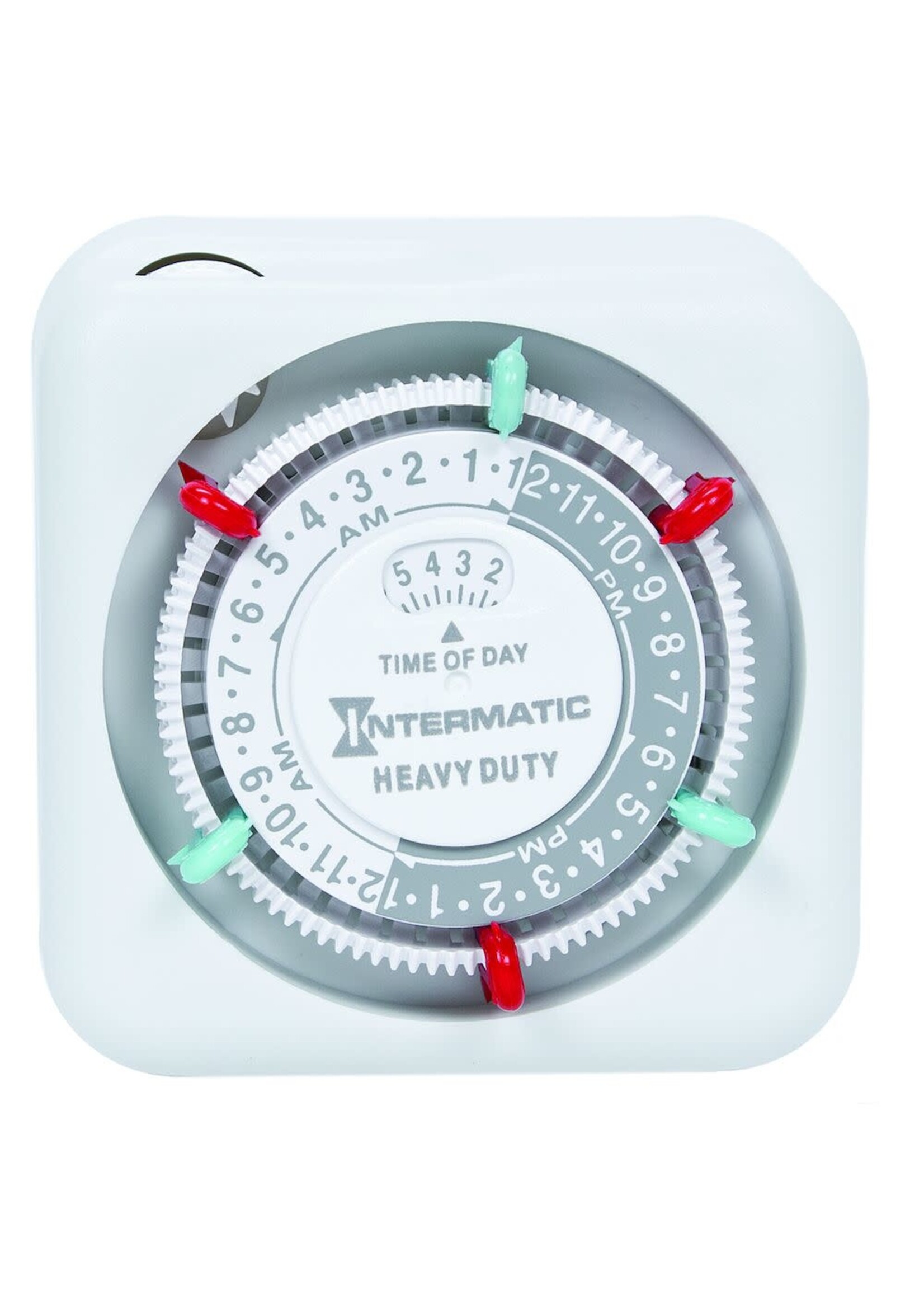

The TN311 Series provides a quick and easy way to automate ON/OFF schedules and plugs directly into standard wall outlets.

3 ON/3 OFF settings per day with removable trippers, more ON/OFF events with addition of extra trippers

Minimum 30-min ON/OFF time

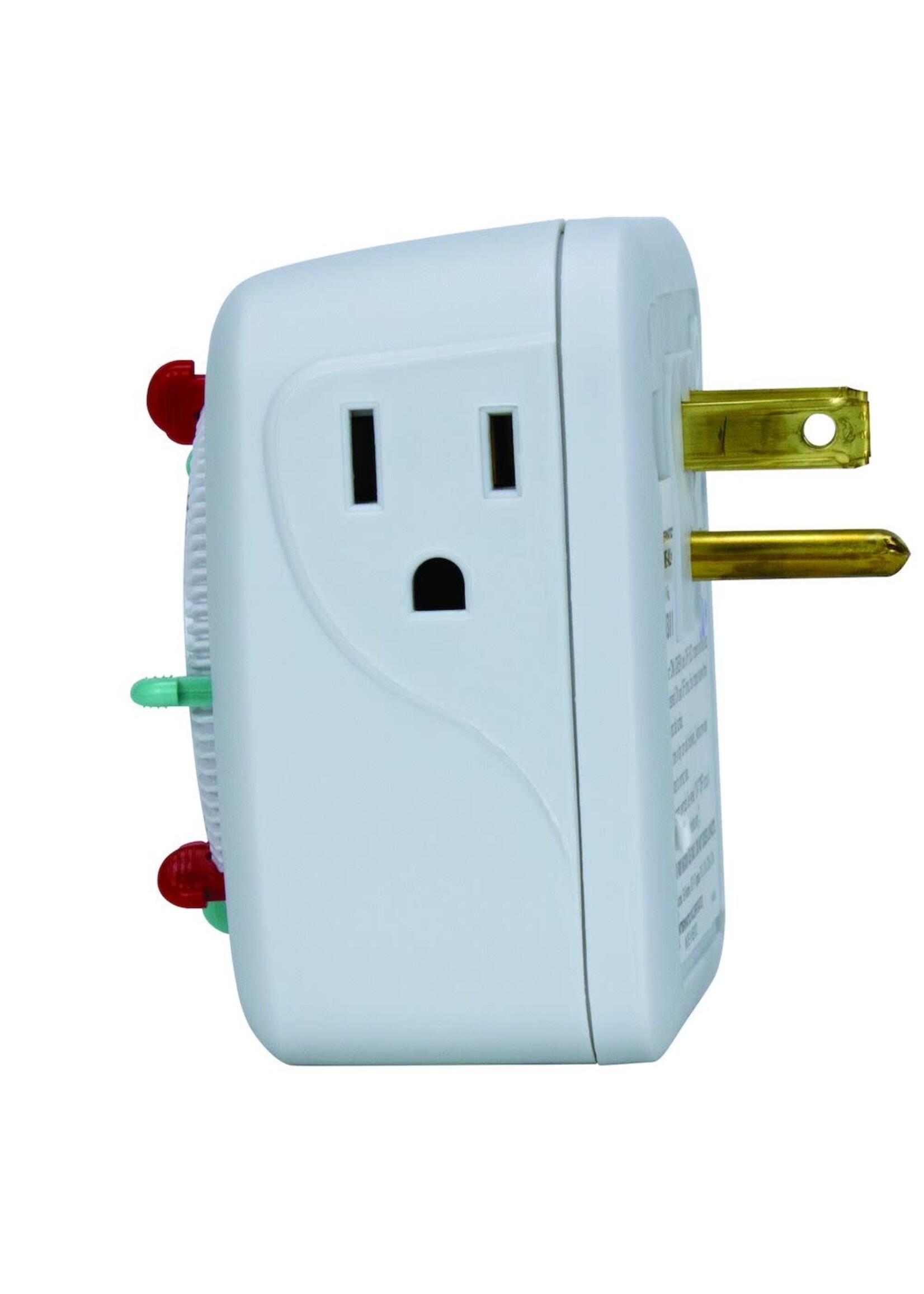

Grounded receptacle and 3-prong plug

Plugs directly into wall outlet

Applications: Air Movement & Ventilation, Indoor Lighting Control

Specifications

Brand Name: Intermatic

Item Name: Analog Timer

Type   Heavy Duty, Mechanical, Plug-in

Supply Voltage: 125 VAC

Timing Range: 30 min - 23 hr

Contact Configuration: SP

Contact Rating: 125 VAC

Reset Time: 1 minute

Dimensions: 76 mm W x 51 mm D x 79 mm H

Amperage Rating: 15 A

Frequency Rating: 60 Hz

Power Source: 1 hp at 120 V

Power Consumption: 1750 W

Contact Material: Tungsten

Material: Plastic

Color/Finish:  White

NEMA Rating: NEMA 5-15

Mounting: Wall

Environmental Conditions: Indoor

For Use With: Holiday lighting

Standards: cCSAus Listed

Application: For Indoor, HVACR, Lamps, Appliances, Electronics, Heaters, Window Air Conditioning, Chargers
