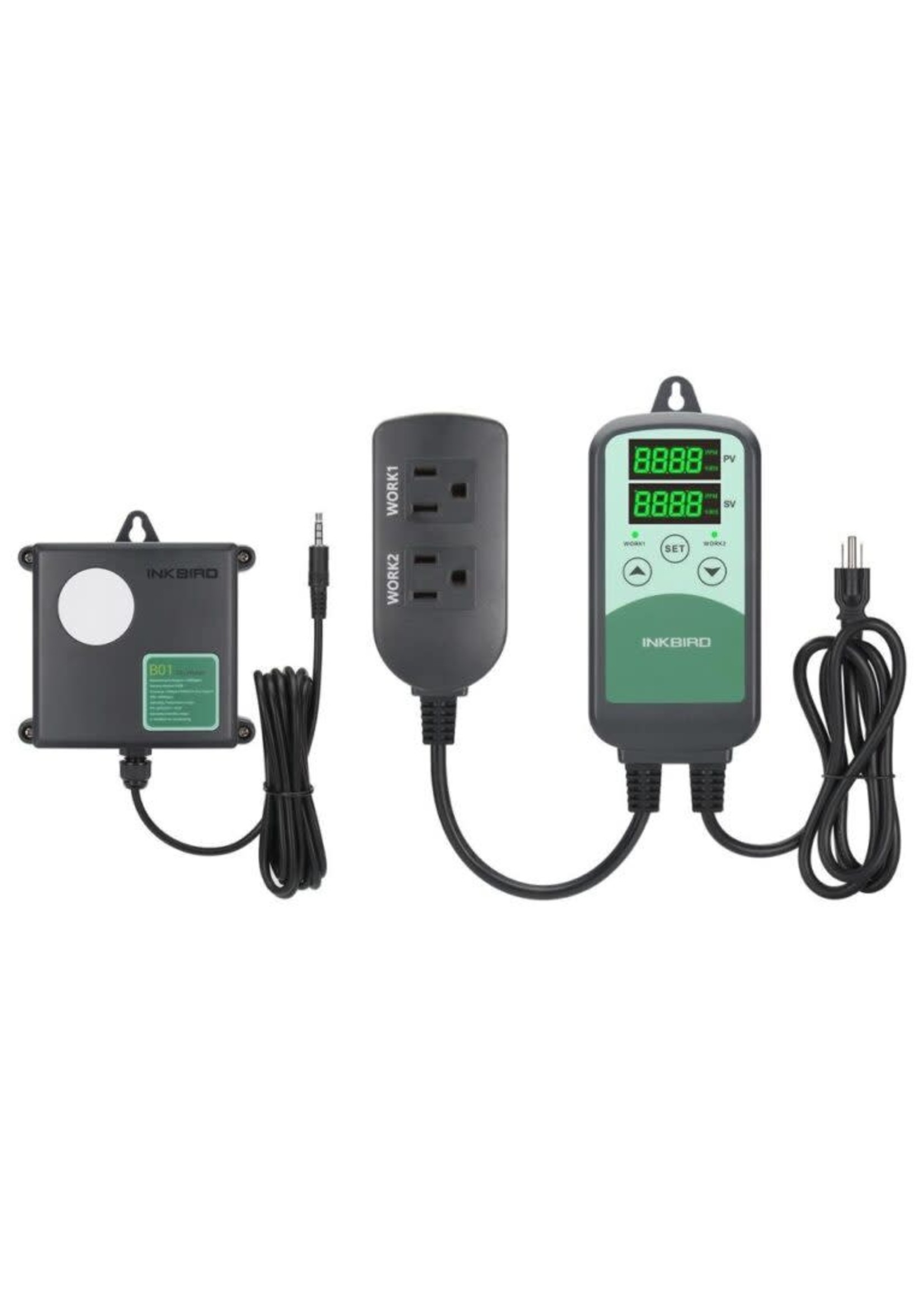

Programmable CO₂ controller ICC-500T

INKBIRD ICC-500T is a programmable CO2 temperature controller with double outlets, calibration, alarms and digital displays and it is popular among and widely used for ventilation system, building control and HVAC equipment.

Input Power: 100~240Vac 50/60Hz 10A MAX

Output Power: 100~240Vac 50/60Hz 10A MAX

(two sockets)

Disconnection Method: Type 1B

Rated Impulse Voltage: 1500V

Automatic Operation: 6000 cycles

Ambient temperature:

Working Environment: room temperature

Storage Temperature: 0℃~60℃/32℉~140℉

Storage Humidity: 20~80%RH (No freezing or condensation)

Warranty Period: 2 years

Measurement Range: 0~9,999 ppm

Sensing Method: NDIR

Sensor Working Temperature: 0℃~50℃/32℉~122℉

Working Humidity: 0~95%RH (non-condensing)

Calibration Method: CO2 reading calibration(current CO2 concentration Value+CO2 calibration value)

Error: ± (30 ppm+3% MV)--S01 Sensor

Response Time (63%): 20 seconds---S01 Sensor

Double relays: INKBIRD ICC-500T is equipped with two relays WORK 1 and WORK 2. WORK 1 is for CO₂ regulator or generator, while WORK2 is for exhaust fan.

CO₂ calibration: INKBIRD ICC-500T supports CO₂ calibration for more precise CO₂ setting, monitoring and controlling.

CO₂ concentration alarm: INKBIRD ICC-500T is programmable for CO₂ concentration alarms, which will be triggered once the CO₂ concentration reaches the set high/low values for safe and more efficiency.

Dual display screen: it has one dual display screen to display its display measured CO₂ and setting CO₂ values simultaneously, much easier for CO₂ monitoring.

Out-of-the-box: INKBIRD ICC-500T is designed for out-of-the-box and plug-and-play, easy to use, easy to move and easy to store.

Reliable: CE&FCC certificated, reliable for use.
